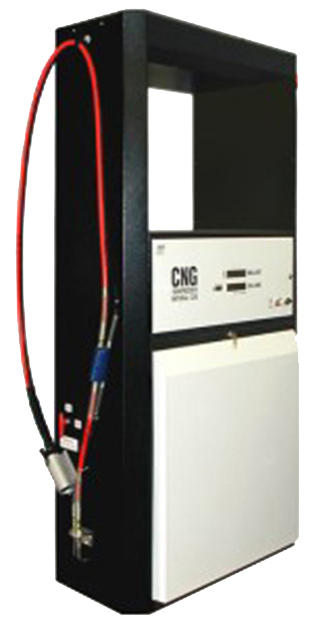

This dispenser is a three-line dispenser that independently meters the gas and gives you a display on both sides of the dispenser. Flow Rate as high as 70 Kg/ mint have been seen with this dispenser in certain configurations. Standard flow rate is 70 Kg/ mint. The New Micro Motion ® CNG50 sensor is used in this dispenser to achieve the flow rate. The dispenser has 1 or 2 PT. The dispenser has a dry contact and a 220VAC hook switch for an "input power. The Micro Motion ® transmitters are located within the dispenser body and are factory set up and calibrated before shipment. The Breakaway is the Staubli make In-Line type with a TGT make vent Breakaway attached to the fill hose Breakaway. All TGT CNG Dispensers have pressure relief valve inside the dispenser cabinet with a vent stack up through the dispenser body. The cabinet is constructed of 16-gauge cold roll stainless steel material. The high body style gives you the look of contemporary gasoline dispenser. The standard color is black with white faces and doors but any custom colors can be applied to the dispenser body. These dispenser will temperatures compensate the fill pressure of the gas and do electronic sequencing of the gas from the storage to the dispenser using the Acufill® algorithm. This dispenser will communicate with a modbus SCADA. Model number will change any with options selected.
Each Include:
- Hy-lok make valve and fittings
- 3 Solenoid Sequencing Valves
- 1 Pressure Gauge
- 1 Staubli In-Line Break-away
- 1 Manual Shutoff Valve
- 1 Powder Coated Cold Roll Carbon Steel Body (Stainless Steel Optional)
- 1 Micro Motion CNG50 Mass Flow Meters (rated at 5000 Psi(345 bar), 170 lbs./min (77kg/min.), 3000 scfm) Flow Rates through the dispenser depends on vehicle capacity to receive gas and nozzle attached to dispenser hose. A ½" hose and a nozzle upgrade is required for flow rates above 1500scfm(42.47m3/Min).
- 1 Relief Valve
- 1 1/2”/ 24“ X 120” Hose Assembly (electrically conductive CNG hose)
- 1 Back lighted TGT Electronic Single Hose Head
- Tubing is ¾” 316 Seamless Stainless Steel
- Optional:
-
Two Drop Sequencing Solenoid Valve Panel Remote from Dispenser
-
Two Drop Sequencing ¾” or ½" Ball Valve Panel Remote from Dispenser
-
NGV1 Type 2 Refueling Connector Nozzle (Staubli)
-
NGV1 Type 1 Refueling Nozzle Sherex CT1000
-
TGT Filter Installed in Dispenser
- Dispenser Base Shear Break-away System Installed in Dispenser
- Stainless Steel Body or carbon Steel powder coat paint
- Pressure transducer for pressure regulator
- Pressure Regulator used when dual pressure and elevated storage
- Upgrade to ½" Hose High Flow Rate Nozzles call for quote
This dispenser is manufactured under the guidelines of:
- NFPA 52
- NFPA 70 (NEC)
- ANSI/IAS NGV 4.0-1999 CSA 12.00-M99
- ANSI B31.3
- CENELEC (on request)
