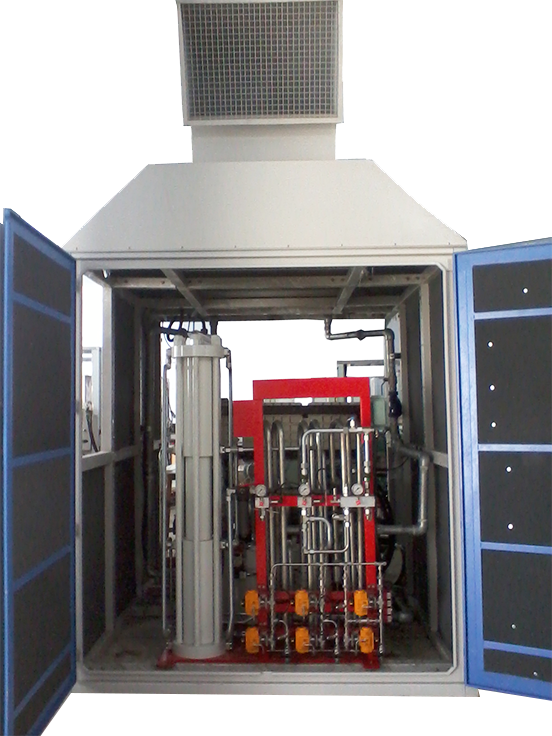

BOOSTER COMPRESSOR

The present machine is a two stages hydraulic gas compressor, with suction pressure (from cylinder trucks) th at can vary between 40 and 18 0 bar and discharge flow pressure between 200 and 25 0 bar.
Inside the cylinder pistons slide with reciprocating movement. The mechanical actuation is through a hydraulic pump driven by an explosion - proof electric motor. The methane gas, coming from the network,
it’s filtered, and then sucked into the chamber of the 1st stage, through two inputs respectively located at the top and at the bottom of the cylinder, inside of which it’s compressed by the reciprocating movement of the pi ston.
The filtration of inlet gas is mandatory because small foreign bodies can damage the cylinder. The compressed gas exits from the cylinder at the discharge pressure t hrough two outputs (one at the bottom and the other at the top) to enter t he first heat exchanger gas / water. The gas , compressed in the first cylinder, enters the second stage chamber to undergo the second compression.
From the cylinder, after having passed through the second heat exchanger gas / water, it’s se nt to for use at high pressure (200 - 2 5 0 bar). In the circuits of the gas , on delivery of both stages, are mounted a pressure switch and a safety valve that will intervene whenever the threshold values of the set pressure is exceeded. The line between the gas supply and the machine must be fitted with one shut - off valve gas

Booster Model – Capacity wise
